Lathe leveling feet are typically not gimbaled, as they rely on static adjustments to stabilize the machine. Gimbaled feet allow multi-axis movement, which is unnecessary for most lathes but may be found in specialized high-precision setups. Understanding this distinction ensures proper setup and avoids costly errors in machining projects.
Key Takeaways
- Gimbaling vs. Static Adjustment: Most lathe feet use fixed screws for leveling, while gimbaled feet offer dynamic tilt adjustment (rare in standard lathes).
- Purpose of Lathe Feet: Their goal is to ensure flatness, not rotational flexibility; gimbaling could introduce instability during cutting.
- Specialized Applications: CNC lathes or aerospace-grade machines might use gimbaled feet for extreme precision or vibration damping.
- DIY Alternatives: Non-gimbaled feet can achieve similar stability with careful leveling tools like digital bubble levels.
- Common Misconceptions: Many assume all “adjustable” feet are gimbaled—they’re often just height-adjustable via screws.
- Maintenance Tip: Regularly check bolt tightness even with non-gimbaled feet to prevent wobbling.
[FEATURED_IMAGE_PLACEHOLDER]
Quick Answers to Common Questions
Question 1?
No, standard lathe leveling feet are usually fixed-height adjustments via screws. Gimbaled feet are rare and reserved for niche applications requiring dynamic self-leveling.
Question 2?
Gimbaling allows multi-axis movement to auto-correct for uneven surfaces or vibrations. Static feet require manual leveling but are cheaper and more stable for general use.
Question 3?
Signs include wobbling, inconsistent cut quality, or visible tilt when using a spirit level. Always check first with bolts/shims before assuming the feet need replacing.
Question 4?
Use shims, anti-vibration pads, or a concrete pad. For extreme cases, consult a machinist about custom solutions.
Question 5?
No, gimbaled feet add cost, maintenance, and complexity for minimal benefit in most workshops. Focus on rigid, well-adjusted static feet instead.
📑 Table of Contents
Introduction: Why Lathe Leveling Matters
Ever noticed how a wobbly lathe ruins your project? Precision starts with solid foundations—and that means perfectly leveled feet. But here’s a burning question: Are lathe leveling feet gimbaled? The short answer? Usually no, but there’s nuance to explore. Let’s break down what these components actually do, when gimbaling might come into play, and how to choose the right setup for your needs.
Whether you’re a hobbyist or a professional, understanding your lathe’s base design can save time, money, and frustration. We’ll cover everything from basic terminology to advanced applications, so you can make informed decisions about your machine’s stability.
1. What Are Lathe Leveling Feet?
Lathe leveling feet are adjustable supports that attach to the machine’s legs or baseplate. Their primary job is to ensure the lathe sits perfectly level across its working surface. Here’s how they work:
- Fixed Design: Most use threaded bolts or knurled nuts for height adjustment.
- Materials: Common options include steel, aluminum, or rubber-coated bases to reduce vibration.
- Adjustment Range: Typically 0.5–2 inches per foot, allowing fine-tuning over uneven floors.
For example, if your workshop floor slopes, you might raise one foot slightly to compensate without tilting the entire lathe. This prevents tool marks from shifting as you work.
2. What Does “Gimbaled” Mean in This Context?
A gimbaled system allows movement around multiple axes (pitch, roll, yaw), like a gyroscope. In lathes, this would mean the feet could tilt dynamically to self-level. However:
- Rarity: Standard benchtop or industrial lathes almost never use gimbaled feet—static adjustments suffice.
- Niche Uses: High-end CNC machines or research labs might employ them to counteract vibrations or thermal expansion.
Fun Fact: Think of gimbaled feet like a tripod head on a camera—overkill for a lathe unless dealing with micro-level precision!
3. Why Aren’t Most Lathes Gimbaled?
There are practical reasons for avoiding gimbaled feet in typical lathe setups:
- Stability Over Flexibility: A rigid foundation minimizes wobble, critical for chip removal accuracy.
- Ease of Use: Manual leveling with bubble levels is simpler than calibrating gimbal sensors daily.
- Cost: Gimbaling adds complexity (hydraulics, motors) and expense.
- Weight Distribution: Extra moving parts could shift load points unpredictably.
Pro tip: If your lathe vibrates excessively, focus on tightening mounting bolts first before assuming the feet need upgrading.
4. When Would You Want Gimbaled Feet?
Despite their rarity, gimbaled feet shine in specialized scenarios:
- Vibration Sensitive Work: Aerospace or semiconductor machining where even micron shifts matter.
- Thermal Expansion: Large castings that warp under heat; gimbals adjust automatically.
- Portable Machines: Field setups where quick re-leveling is needed between jobs.
Example: A Swiss-style CNC lathe might use piezoelectric sensors in its feet to maintain sub-millimeter accuracy.
5. How to Check Your Lathe’s Foot Type
If you’re unsure whether your feet are gimbaled, follow these steps:
- Inspect Movement: Try tilting the foot manually—if it resists or has no pivot, it’s static.
- Check Manuals: Search for terms like “active leveling” or “self-aligning.”
- Ask Experts: Contact the manufacturer or visit forums like WoodNet or MachinistTalk.
Remember: Even non-gimbaled feet require regular checks! Use a spirit level on the lathe’s bed every few months.
6. DIY Solutions for Uneven Floors
Don’t have gimbaled feet? No problem! Here’s how to adapt:
- Shims: Use thin metal or wood shims under feet for minor adjustments.
- Anti-Friction Pads: Rubber mats reduce vibration without altering height.
- Professional Help: For severe slopes, consider a concrete pad or floating floor.
Warning: Never rely solely on adhesive pads—they can slip under heavy loads!
Conclusion: Stability Is Key
In short, most lathe leveling feet aren’t gimbaled because simplicity and rigidity trump flexibility for everyday use. That said, knowing when gimbaled systems exist helps you spot opportunities for upgrades in high-stakes projects. Whether you stick with classic screw-adjustable feet or explore advanced tech, the goal remains the same: a rock-solid foundation for flawless machining.

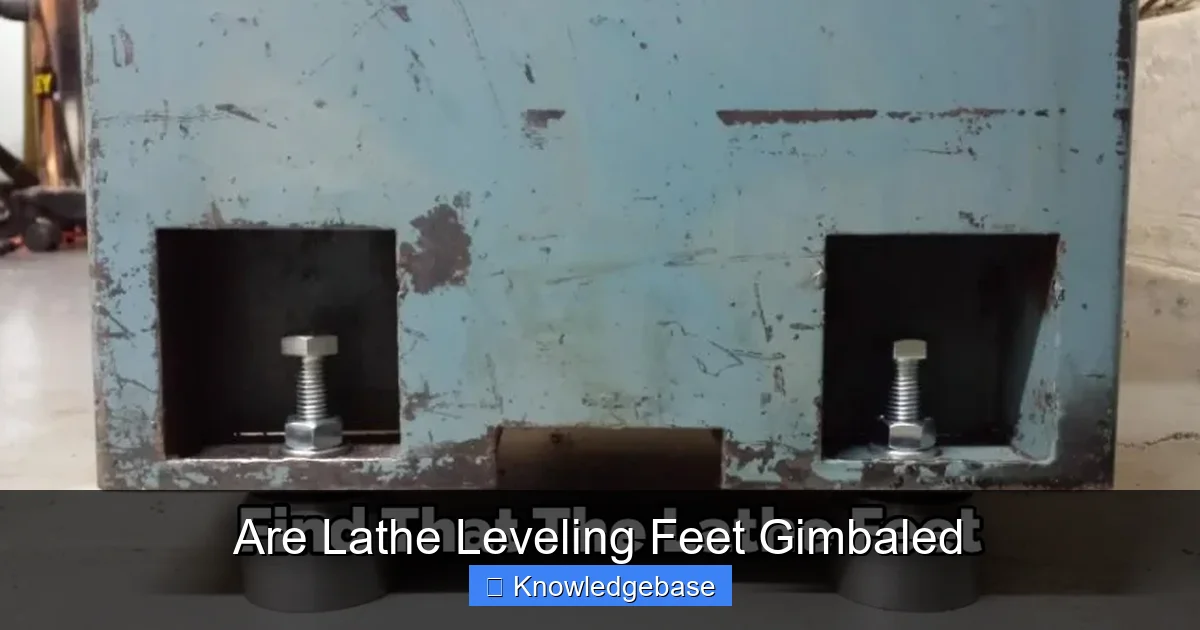

Visual guide about Are Lathe Leveling Feet Gimbaled
Image source: metalfixes.com
Now go level that lathe—your next project will thank you!
Frequently Asked Questions
What’s the difference between gimbaled and adjustable feet?
Adjustable feet change height via screws, while gimbaled feet tilt dynamically to self-level. The latter is uncommon in lathes due to added complexity.
Can I retrofit gimbaled feet onto my lathe?
Possible but challenging—you’d need compatible brackets and possibly structural reinforcements. Consult a machinist first.
Do gimbaled feet reduce setup time?
Yes, but only in environments where frequent re-leveling is needed (e.g., fieldwork). For home shops, manual leveling is often faster.
How often should I check my lathe’s leveling feet?
Every 3–6 months, or immediately after floor renovations/heavy machinery moves nearby.
Are rubber-coated feet better than metal ones?
Rubber reduces vibration transmission but may compress over time. Metal lasts longer but transfers more floor noise—choose based on priority.
